Pasteurizers
PA300E Electric Pasteurizer (300L)
Other products by
Voran
Item #:
PAV-300E
Our Price:
$21,800.00
Quantity:
click on thumbnail to zoom
Description
Also in Pasteurizers
Description

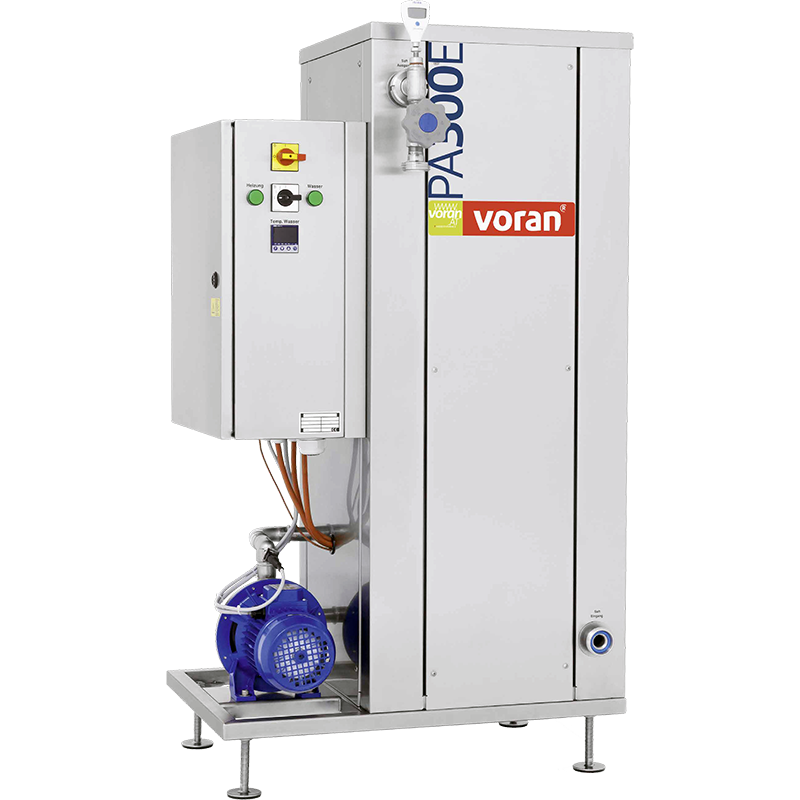

The PA300E by Voran is an electric Juice Pasteurizer with heating elements and tube heat exchanger. A digital control unit is used to adjusted the temperature of the heating elements within the water bath.
An on-board pump is used to fill the water bath and recirculate the water throughout the pasteurization process to maintain consistent water temperature.
Raw juice flows through the spiral heat exchanger within the water bath, heating the juice to the desired temperature. A digital thermometer is mounted on the outlet port to monitor the temperature of the juice as it leaves the paseurizer. The PA300E will process 300 Liters per hour at 80° C (176° F).
A separate pump (
NOT INCLUDED WITH PA300E
) is required to transfer juice to and from the pasterurizer.
An automated version of this unit, the
PA300EA
, with an on-board juice pump and automatic flow control can be found
HERE
.
Click Here to see the automated PA300EA in action
DETAILS
Hourly Production: 300 Liters
On-board pump to fill water bath and recirculate water
Mechanical Float in water bath to control fill level
Digital control unit to control heating elements in water bath
Juice flows through stainless steel tubular heat exchange in water bath
Digital display of juice temperature at outlet port
Heating elements contain overheat protection
External juice transfer pump required (
NOT INCLUDED
)
Heating time (to 80° C): 10 min
Required Water Volume: 35L
Power: 27 kW, 3-PH 220v, 50A
Dimensions: 30" L x 20" W x 55" H
400 lbs Transport Weight
AISI 304 stainless steel construction
Made in Austria by Voran
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY! - We will call with actual shipping costs prior to shipping or charging your credit card.
This item is not crated for shipping either when imported to the U.S. or shipped to our customers as the added weight would make them cost prohibitive to ship. Accordingly they may be received with very minor scratches not that dissimilar than they will receive during their normal use, but are guaranteed to arrive in working orde
