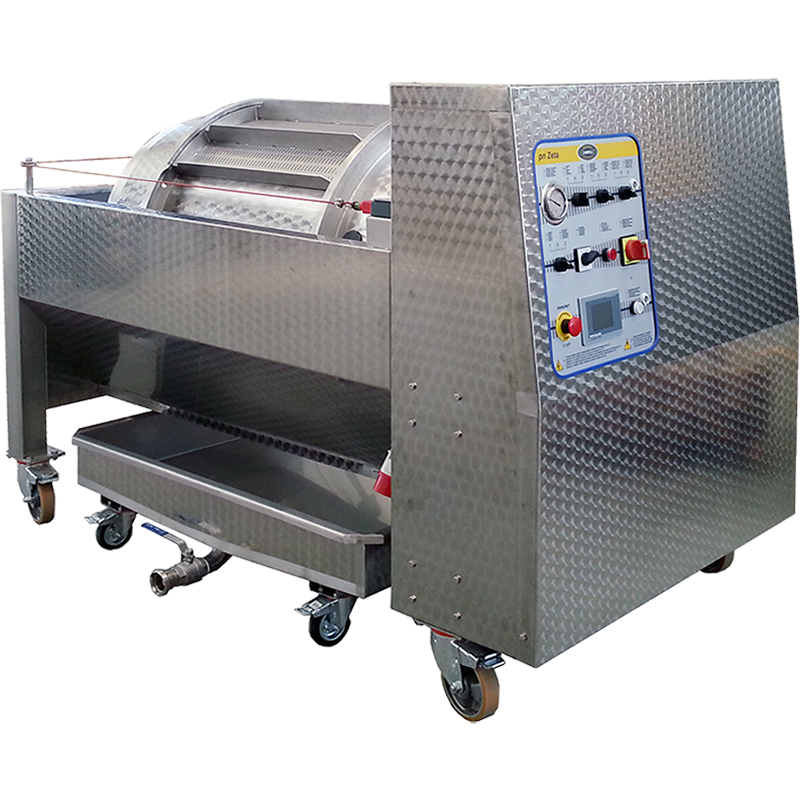

Pneumatic Horizontal Press, "PN-ZETA"
Other products by
Zambelli
Item #:
PHZ-
Our Price:
make selection(s)
Size
PN6 (6 hL)
PN10 (10 hL)
PN14 (14 hL)
PN17 (17 hL)
Quantity:
click on thumbnail to zoom
Description
Also in Pneumatic Horizontal Presses
Description
The Zambelli PN-Zeta Horizontal Pneumatic Press is constructed entirely of AISI 304 stainless steel. Through a soft and gentle pressing of the membrane, the Pneumatic Press has the ability to extract juice from whole grape clusters, destemmed whole grapes, and fermented and/or crushed grapes at a very high hourly output. Loading can take place through one or several doors or through an axial loader. The press tanks are entirely closed, thus limiting the oxidation of the product and guaranteeing a very high quality of must. The flow of the must takes place through inner drains and through the perforated loading door. The new control board is equipped with a touch-screen PLC unit which is pre-programmed with 6 working cycles and 3 customizable cycles; their run duration can be customized and all working processes can also be manually controlled.
To watch a video of the PN-Zeta
TOP
Features and Operation
CLICK HERE
DETAILS
Capable of pressing whole clusters, destemmed and fermented grapes (see chart below)
3 Operating Modes (Automatic, Semi-Automatic, & Manual)
9 Working Cycle options (6 pre-programmed, 3 customizable)
Digital control panel capable of override for manual control
0.1 - 3 Bar operating pressure
Self-Braking Geared Motor
Compressor and Fan
Ball Valve on Loading System
Must Collection Tank
Safety Photocell
Motor: 1-Ph, 240v, 60 Hz (3-Ph motor available upon request)
Made in Italy
Customizations available upon request:
Pressure Sensor on Intake Ball Valve pre-wired to control inflow transfer pump
Electric Float on Must Tank pre-wired to control outflow transfer pump
Watertight Doors for Carbonic Maceration
Open Cylinder without Draining Channels
Custom Frame Height for unloading in bins or on conveyer
PN-ZETA 6
PN-ZETA 10
PN-ZETA 14
PN-ZETA 17
DRUM VOLUME:
600 L (6 hL)
1,000 L (10 hL)
1,400 L (14 hL)
1,700 L (17 hL)
LOADING CAPACITY
Whole Clusters:
Destemmed:
Crushed/Fermented:
990 lb (450 kg)
1980 lb (900 kg)
2200 lb (1000 kg)
1765 lb (800 kg)
3530 lb (1600 kg)
3750 lb (1700 kg)
2200 lb (1000 kg)
4850 lb (2200 kg)
5070 lb (2300 kg)
2645 lb (1200 kg)
5950 lb (2700 kg)
6175 lb (2800 kg)
DOOR DIMENSIONS
Length:
Width:
24.5 in (600 mm)
18.5 in (470 mm)
27.5 in (700 mm)
18.5 in (470 mm)
27.5 in (700 mm)
18.5 in (470 mm)
27.5 in (700 mm)
18.5 in (470 mm)
PORTS
Intake:
Discharge:
3.0 in Tri-Clamp
1.5 in Tri-Clamp
3.0 in Tri-Clamp
1.5 in Tri-Clamp
3.0 in Tri-Clamp
1.5 in Tri-Clamp
4.0 in Tri-Clamp
1.5 in Tri-Clamp
TOTAL DIMENSIONS
Length:
Width:
Height:
79 in (2000 mm)
43 in (1100 mm)
51 in (1300 mm)
95 in (2405 mm)
54 in (1360 mm)
53 in (1350 mm)
103 in (2605 mm)
58 in (1460 mm)
57 in (1450 mm)
103 in (1605 mm)
58 in (1460 mm)
61 in (1550 mm)
POWER:
3.0 HP, 1-Ph, 240v
4.5 HP, 1-Ph, 240v
6.2 HP, 1-Ph, 240v
8.5 HP, 1-Ph, 240v
WEIGHT:
805 lb (365 kg)
1035 lb (470 kg)
1145 lb (520 kg)
1610 lb (730 kg)
CALL TO ORDER
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY! - We will call with actual shipping costs prior to shipping or charging your credit card.
