PRIMA Automatic Capper / Corker
Other products by
ViMEG
Item #:
BLV-PRIMA-1
Our Price:
make selection(s)
Closure
Head Type
Cork
Screw Cap
Crown Cap
Voltage
No options available for 'Voltage' at this time.
Quantity:
click on thumbnail to zoom
Description
Also in Single Stations
Description

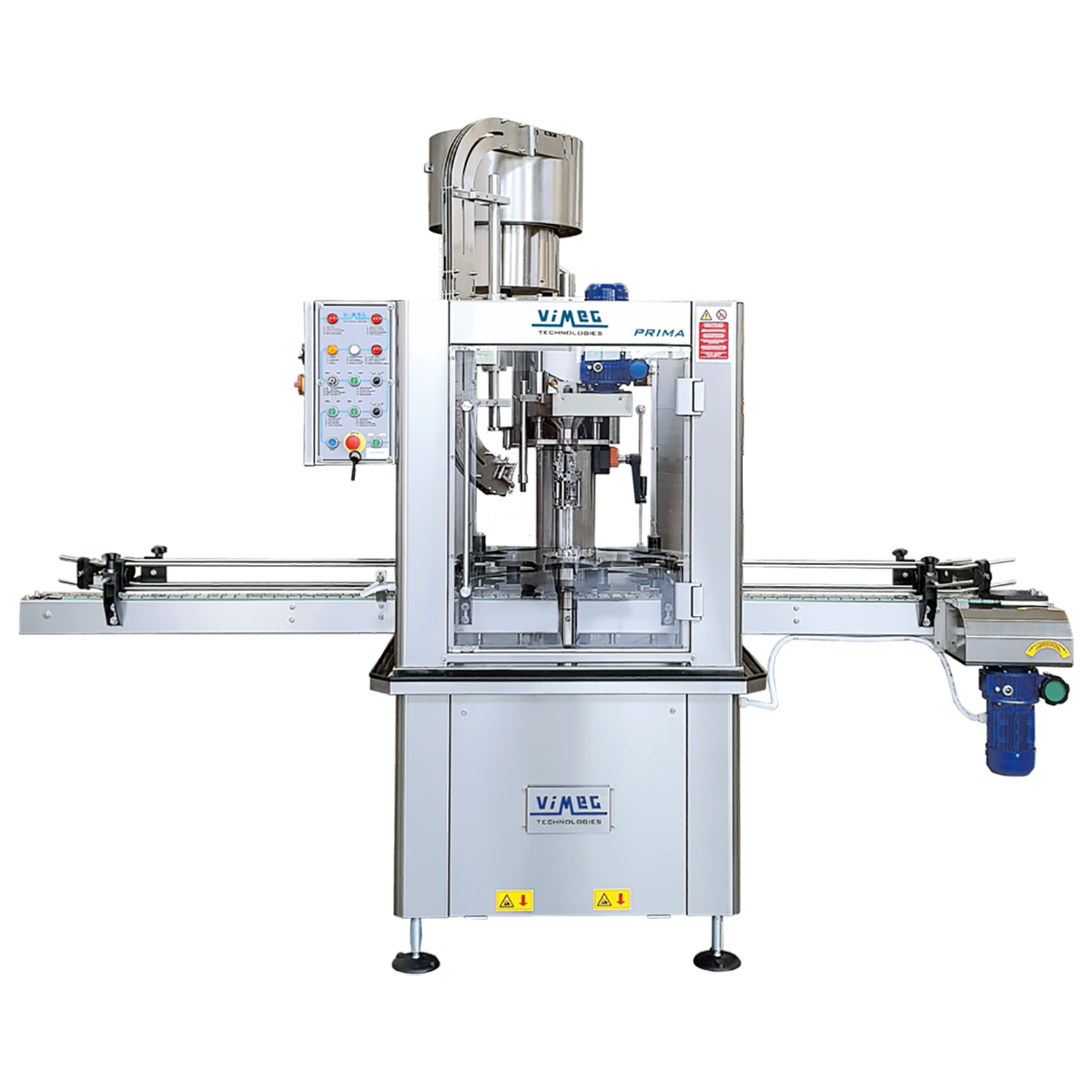

The PRIMA-1 Single-Station Capper by ViMEG is a fully automatic capping machine that can be configured to apply Corks, Screw Caps, or Crown Caps to bottles of various shape or size. The self-contained unit is complete with its own conveyer belt for loading and unloading bottles, hopper with loading arm for the caps and corks, single corking or capping head (screw cap heads are produced based on specs of intended caps), motor, and on-board control unit for operating the machine and adjusting the production speed. The revolving in-feed starwheel secures the base of the bottle at the point of capping, while individual microsensors ensure that the bottle opening is correctly aligned for precise application of the cork or cap. The on-board variable frequency digital control allows you to adjust the speed of both the conveyor and corking piston / capper head, as well as switch between automatic and manual capping on the fly. The descending cork / cap track contains a photocell sensor to ensure the presence of a cork / cap in the feed channel.
The PRIMA-1 is modular and can be operated as a stand-alone unit or in a fully-integrated series with other ViMEG Single-Station, Monoblock, Triblock, and Quadriblock machines.
To see a video of the Corking station in action
CLICK HERE
To see a video of the Screw Capping station operate
CLICK HERE
To see a video of the Crown Capping station in use
CLICK HERE
DETAILS
Production: 800 - 3000 bottles per hour
Digital control unit with variable frequency drive to adjust speed of conveyor and cap application
Three closure/head configurations:
Cork (natural, agglomerate, & synthetic, sizes #7 - #10)
Screw Cap (manufactured to order based on specific closure type)
Crown Cap (29mm or 35mm Ø)
Operable as single unit or in series with other ViMEG machines
A
djustable lift plate and descending head accommodate bottles up to 15 in (375 mm) in height
Universal starwheel can be replaced to accommodate unconventional bottle shape and size
AISI 304 stainless steel construction
Power: 1.5 HP, 240v, 1 PH, 4.6A
1600 lbs
Made in Italy
Available Options:
Touch-screen Control Unit
1
00 editable presets for material, bottle, cap type; operating speed, etc
.
Bottle CounterError Diagnostics with photocells at:
M
achine Exit - stop machine if collection tray is full
L
oading Hopper - stop machine if hopper is empt
y
Ca
pping Outlet - stop machine if cork is misloaded or improperly inserte
d
Nitrogen injection on corker or screw capper head
Second head installed to accommodate multiple closure types and sizes
Additional hopper and descending arm to switch between closure types on the fly
CALL FOR PRICING & AVAILABILITY
