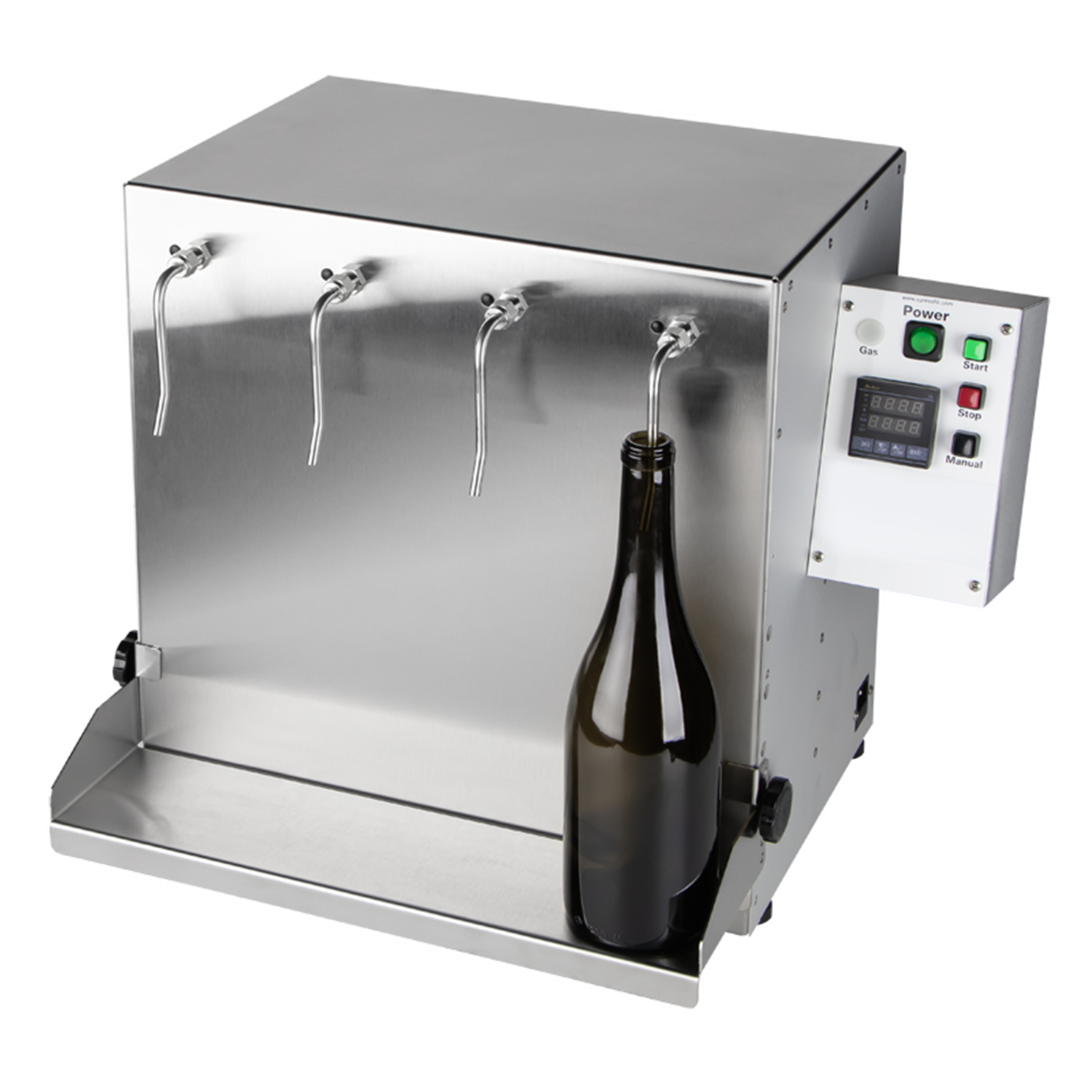

XF 4-Spout Volumetric Filler

Price: $3,195.00
  • Item #XF4-FILL-1

Available Options

- +

The XF 4-Spout Volumetric Filling machine is a high quality volumetric filling machine at an affordable price point. This filler can accommodate low viscous liquids & non-carbonated beverages, including wine & spirits with an alcohol content up to 70%.

Our versatile volumetric filler stands out with its adjustable shelf, providing unparalleled flexibility for filling a diverse range of bottle sizes. Maintaining compliance with TTB regulations (Alcohol and Tobacco Tax and Trade Bureau), this filler is particularly well-suited for industries such as Winemaking, Cider, Distilled Spirits, Olive Oil, and many others.

Precise volume control is achieved through the digital timer interface, allowing users to input the required filling time. For instance, filling a 2 oz bottle might take 4 seconds, a 275 ml bottle 13 seconds, and a 750 ml bottle 25 seconds (based on water). Adjustments can be made down to .01 seconds, and the digital timer retains settings in its memory until modified by the user. This is a great alternative to vacuum filling.

The XF 4-Spout Volumetric Filler can be enhanced with a small-bottle adapter tray, boosting bottling efficiency based on bottle size.

This Volumetric Filler is an ideal solution for a wide range of liquids; including wine, distilled spirits, vinegar, liqueurs, olive oil, or other products with a viscosity level lower than 500 cps. Additionally, this filler is well-suited for non-rigid bottles, such as plastic or paper bottles.

Please contact our sales staff for availability, lead times, and shipping quotes.

Details:

  • Digital Timer Controls
  • Mesh Sediment Inline Strainer
  • Capacity (Bottles/hr):
    • Wine: Fills up to 450 Bottles per Hour (750mL)
    • Olive Oil: Fills up to 400 Bottles per Hour (500mL)
  • Bottle Size Ranging from 5ml to 5 gallon (height not to exceed 13.5 inches)
  • Suitable for viscosity levels of 500 cps or below
  • Stainless Steel Front
  • Adjustable Filling Tray
  • Transfer Kit
  • Food-Grade Components in Flow Path
  • Laminar Flow Designed Filling Spouts
  • Self Priming
  • Diaphragm Pump
  • Weight: 32 lbs
  • Dimensions: 16"w x 17"h x 15.5"d
  • AC Power 115 VAC, 1.5 Amps, 50/60hz.

Optional Upgrades:

  • Nitrogen Insert Gas
  • Custom Filler Spouts
    • For unusual sized or shaped bottles
  • Small Bottle Adapter Tray

CONTACT US FOR AVAILABILITY
