click on thumbnail to zoom

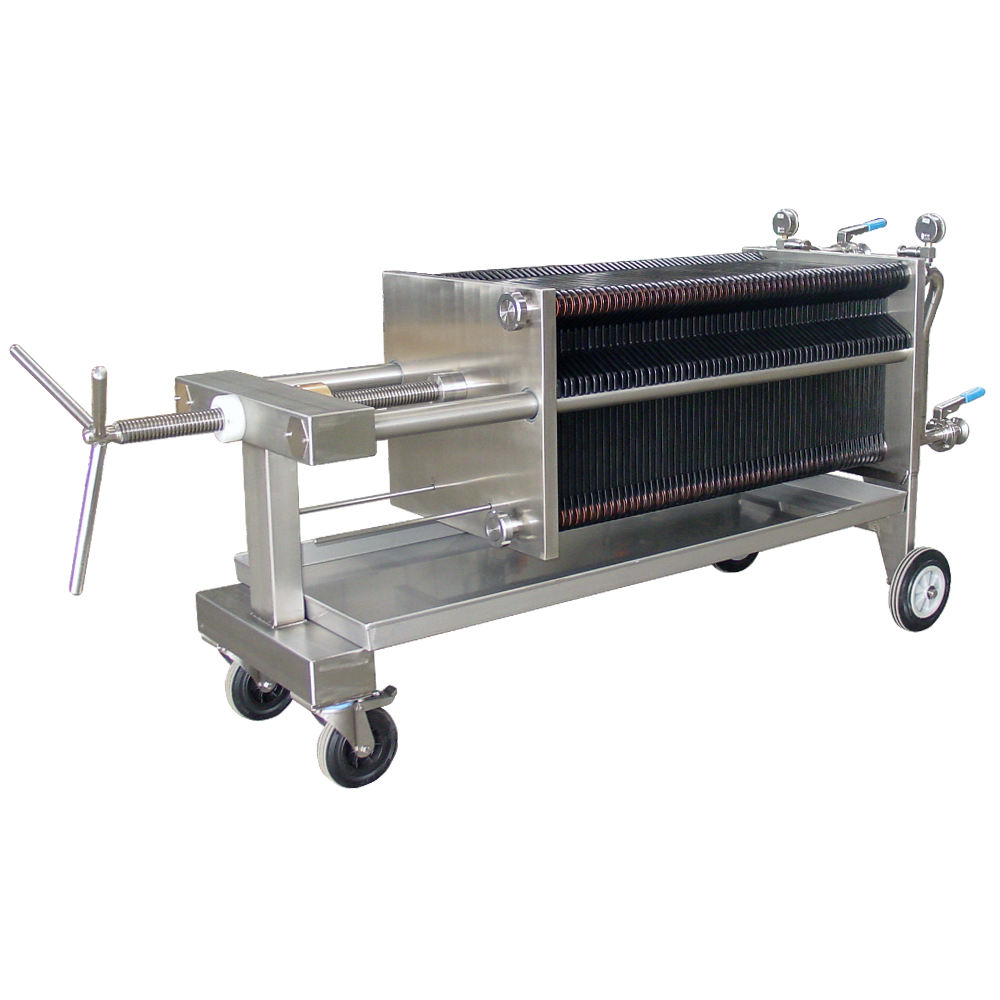

CF46 60 Plate Filter (40x40)
(56 - 105 HL/h)

Price: $8,000.00
  • Item #PFZ-CF46
- +
The Zambelli CF46 is a professional grade 40x40 plate filter designed for the small winery. Built from AISI 304 stainless steel, with 60 food-grade polypropylene plates providing a filtration surface of 9.6 m2, this filter is built to last a lifetime with minimal maintenance and consistent output of up to 10,500 liters (2775 gallons) per hour. The included Crossover Plate (or "Inversion Plate") enables more than one grade of filter sheet to be used simultaneously- a process called "Double Filtration". The heavy-duty stainless frame features a drip tray, large wheels for sturdy mobility, dual pressure gauges, a sight gauge for monitoring clarity, and 1.5” Tri-Clamp inlet and outlet. Pump not included.

DETAILS
  • 60 Polypropylene Filter Plates (40 x 40 cm)
  • Filtration rate of 56 - 105 HL/h (1475 - 2775 gal/h)
  • Total filtration area of 9.6 m2 (103 ft2)
  • Crossover Plate for Double Filtration
  • Dual Pressure Gauges
  • Butterfly Valves to control inlet & outlet flow
  • Sight Gauge on outlet port
  • Pump not included
  • 1.5" Tri-Clamp inlet and outlet
  • AISI 304 stainless steel construction
  • 91" L x 28" W x 37" H
  • 775 lbs
  • Italian made by Zambelli
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY! - We will call with actual shipping costs prior to shipping or charging your credit card.
This item is not crated for shipping either when imported to the U.S. or shipped to our customers as the added weight would make them cost prohibitive to ship. Accordingly they may be received with very minor scratches not that dissimilar than they will receive during their normal use, but are guaranteed to arrive in working order.
