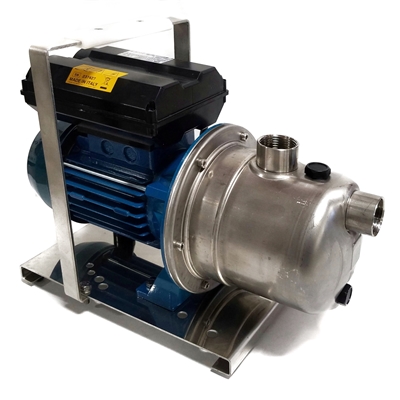

Solid Impeller Pump, "JIMG5"
(60 Lt/min)

Price: $295.00
  • Item #WPT-J50

Optional Base

- +
The Tellarini JIMG5 is a self-priming, stainless steel centrifugal solid impeller (thermoplastic) pump suited for transferring wine and concentrated juice. The 0.5 HP 110 volt motor pumps up to 60 liters per minute. The Pump Head and internals are constructed from AISI 316 Stainless Steel, excluding the impeller which is made of food grade HDPE solid thermoplastic and provides a high flow-rate and is particularly suited for corrosive liquids.

The Cart and Carrying Stand are NOT INCLUDED with the pump, but can be purchased separately.

DETAILS
  • Transfer Rate: 60 Lt/min (15.85 gal/min) at Neutral
  • Maximum Working Pressure: 6 Bar (87 PSI)
  • Maximum Liquid Temperature: 45° C (113° F)
  • Maximum Total Head: 32 m (105 ft)
  • Maximum Suction Depth: 8 m (26.25 ft)
  • Connections: 1.0" FNPT Intake & Discharge
  • Self Priming (Pump Head Needs to be Filled)
  • Motor: 0.5 HP, 110v 1-PH, 4.2A
  • Impeller Material: High Density Polyethylene
  • Body Material: AISI 304 Stainless Steel
  • Shaft Material: AISI 316 Stainless Steel
  • Dimensions: 15.5" L x 5.75" W x 7" H, 16 lbs
  • Made in Italy
