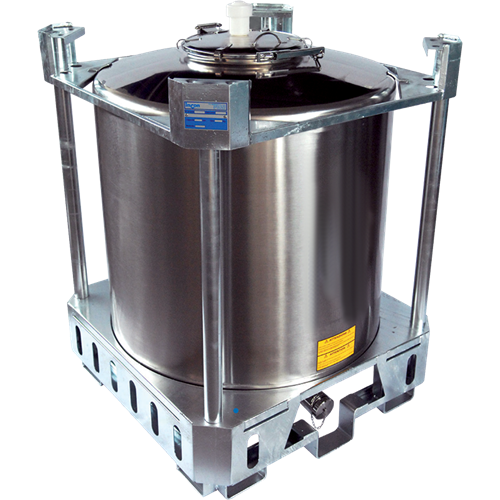

IBC Caged Transport Tank

Price: make selection(s)
  • Item #IBC-PL
- +

Our IBC Caged Transport Tank is constructed entirely of AISI 304 Stainless Steel. These IBC Tanks come in a closed-top format and are housed in a stackable galvanized cage with a palletized base outfitted with fork slots on each side for transport via forklift or pallet jack. Each tank comes standard with the following features:

  • Round Bottom/Dish Bottom with molded pocket for full discharge (Conical or Slope Optional)
  • Center Drain Port with 2.0" Tri-Clamp Ball Valve (Corner Drain Optional)
  • 400mm Top Manway Door
  • Top 2.0" Tri-Clamp for CIP
  • Top 1.5" Tri-Clamp for PRV
  • 3/8" Sample Port with Valve
  • Palletized Base with Fork Slots
  • Cold-rolled AISI 304 stainless steel tank
  • Hot-dip galvanized steel protective frame and base
  • Stackable frame supports up to 3 empty tanks or 2 full tanks
  • Italian made by Incon Tanks
  • SEE BELOW FOR COMPLETE SPECIFICATIONS
ADDITIONAL CUSTOMIZATION AVAILABLE:
  • Corner Total Drain
  • Cooling/Heating Jacket
  • Elevated Tank
  • Conical or Slope Bottom
  • Racking Port with Ball Valve
  • Front Manway Door
  • Thermometer with Thermowell
  • Sight Level Gauge
DETAILS:
MODELCAPACITYBOTTOMVOLUME DIM.
(DIA. x HGT.)
TOTAL DIM.
(DIA. x HGT.)
DISCHARGE
PORT
SAMPLE
PORT
LID
DIAMETER
TOP
PORTS
MATERIAL
PC 1000265 Gal
(1000 L)
ROUND
Center Drain
43x36 in
(1080x910 mm)
45x58 in
(1135x1460 mm)
2.0" TC
Ball Valve
3/8" MPT
Tap Valve
400 mm2.0" TC
1.5" TC
2.0 mm
AISI 304 SS
PC 1250330 Gal
(1250 L)
ROUND
Center Drain
43x49 in
(1080x1250 mm)
45x71
(1135x1800 mm)
2.0" TC
Ball Valve
3/8" MPT
Tap Valve
400 mm2.0" TC
1.5" TC
2.0 mm
AISI 304 SS
PC 1500400 Gal
(1500 L)
ROUND
Center Drain
43x59 in
(1080x1500 mm)
45x81 in
(1135x2050 mm)
2.0" TC
Ball Valve
3/8" MPT
Tap Valve
400 mm2.0" TC
1.5" TC
2.0 mm
AISI 304 SS








CALL TO ORDER

CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY! - We will call with actual shipping costs prior to shipping or charging your credit card.

This item is not crated for shipping either when imported to the U.S. or shipped to our customers as the added weight would make them cost prohibitive to ship. Accordingly they may be received with very minor scratches not that dissimilar than they will receive during their normal use, but are guaranteed to arrive in working order.
